Application

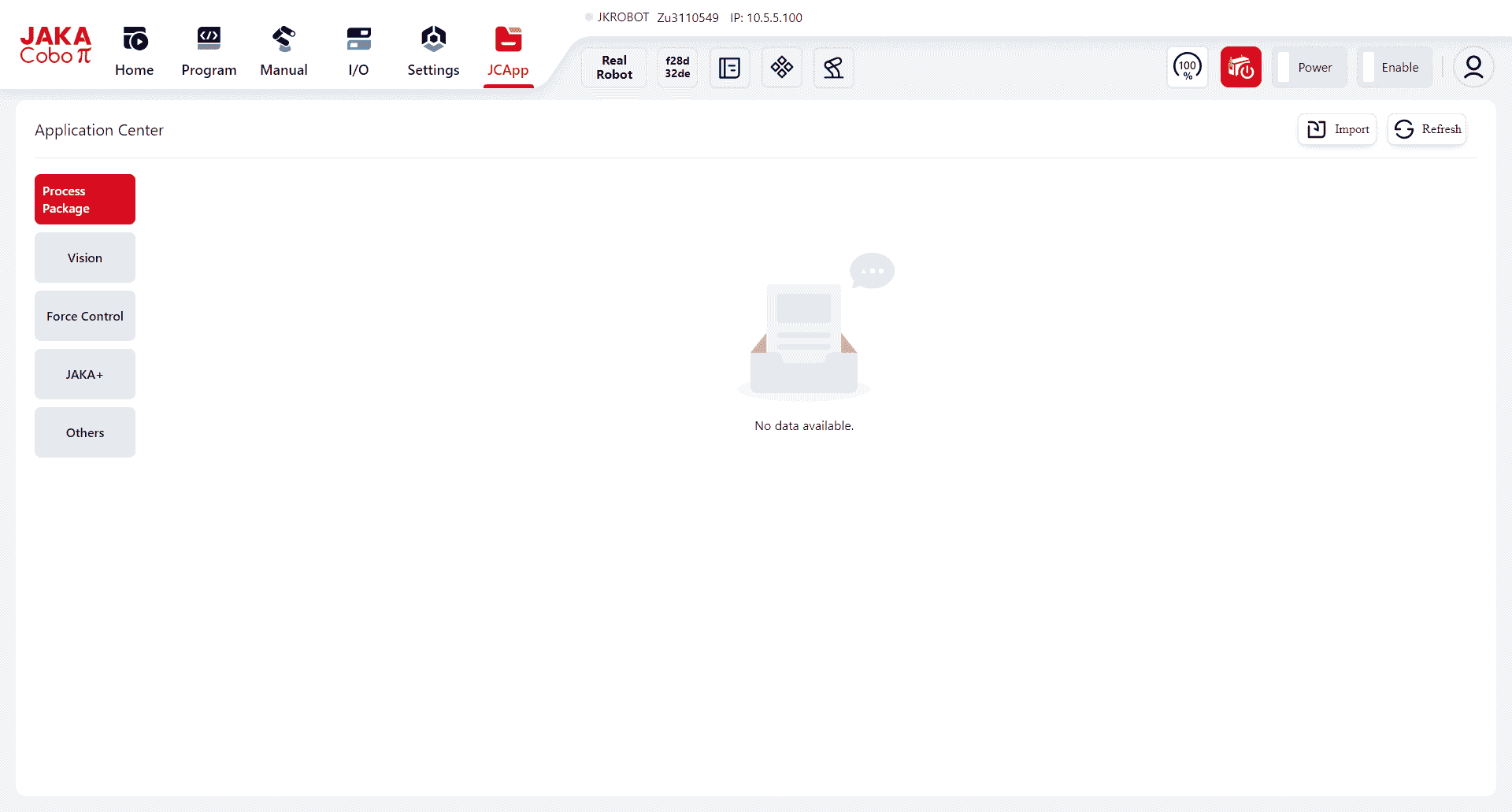

As shown in the figure, this page allows users to add additional programs according to their requirements.

Warning：

Before adding applications, the robot must first be disabled.

Steps to Add an Application

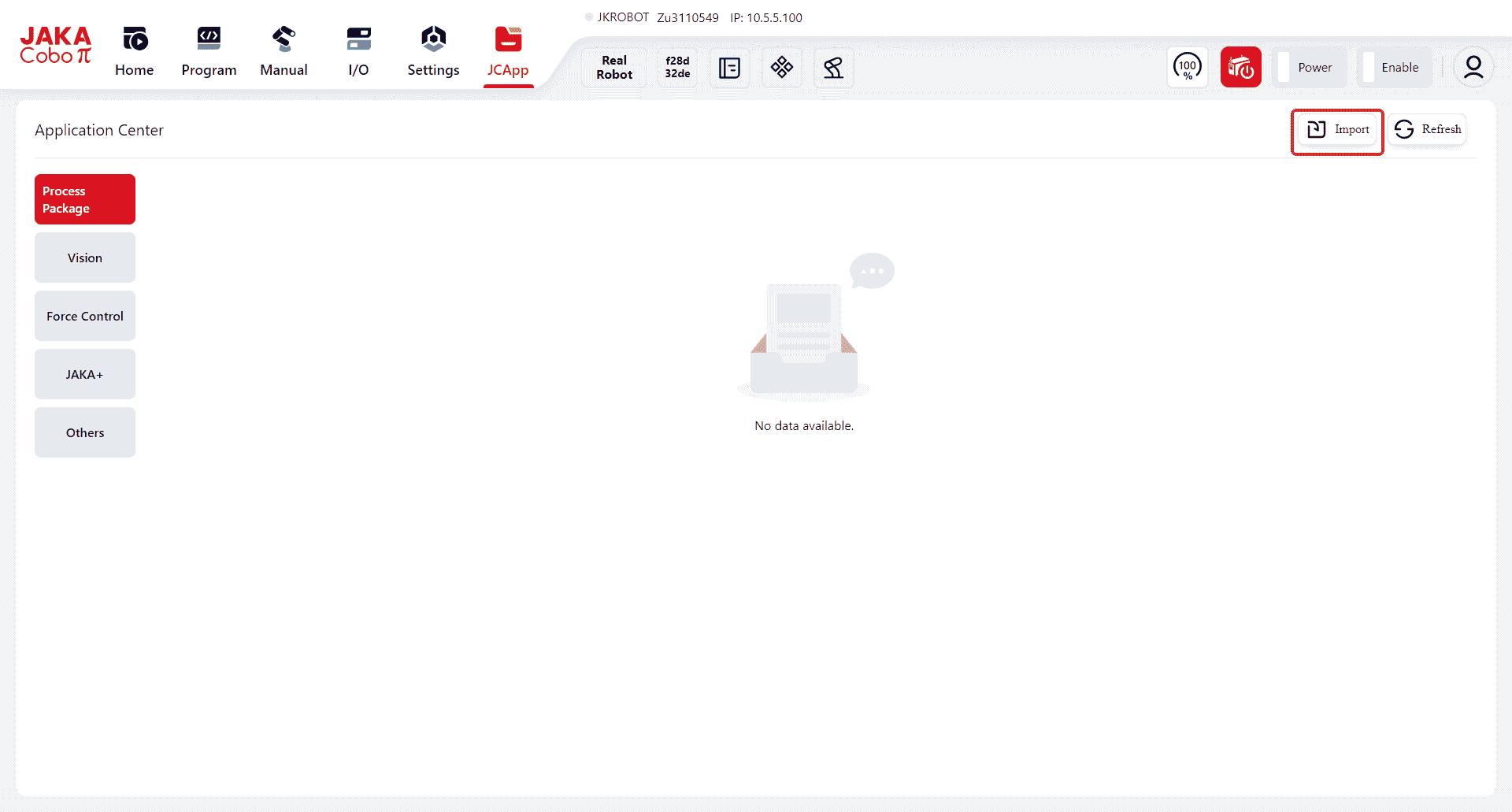

• Click Import

• Select the relevant accessory package file. The file extension must be .tar

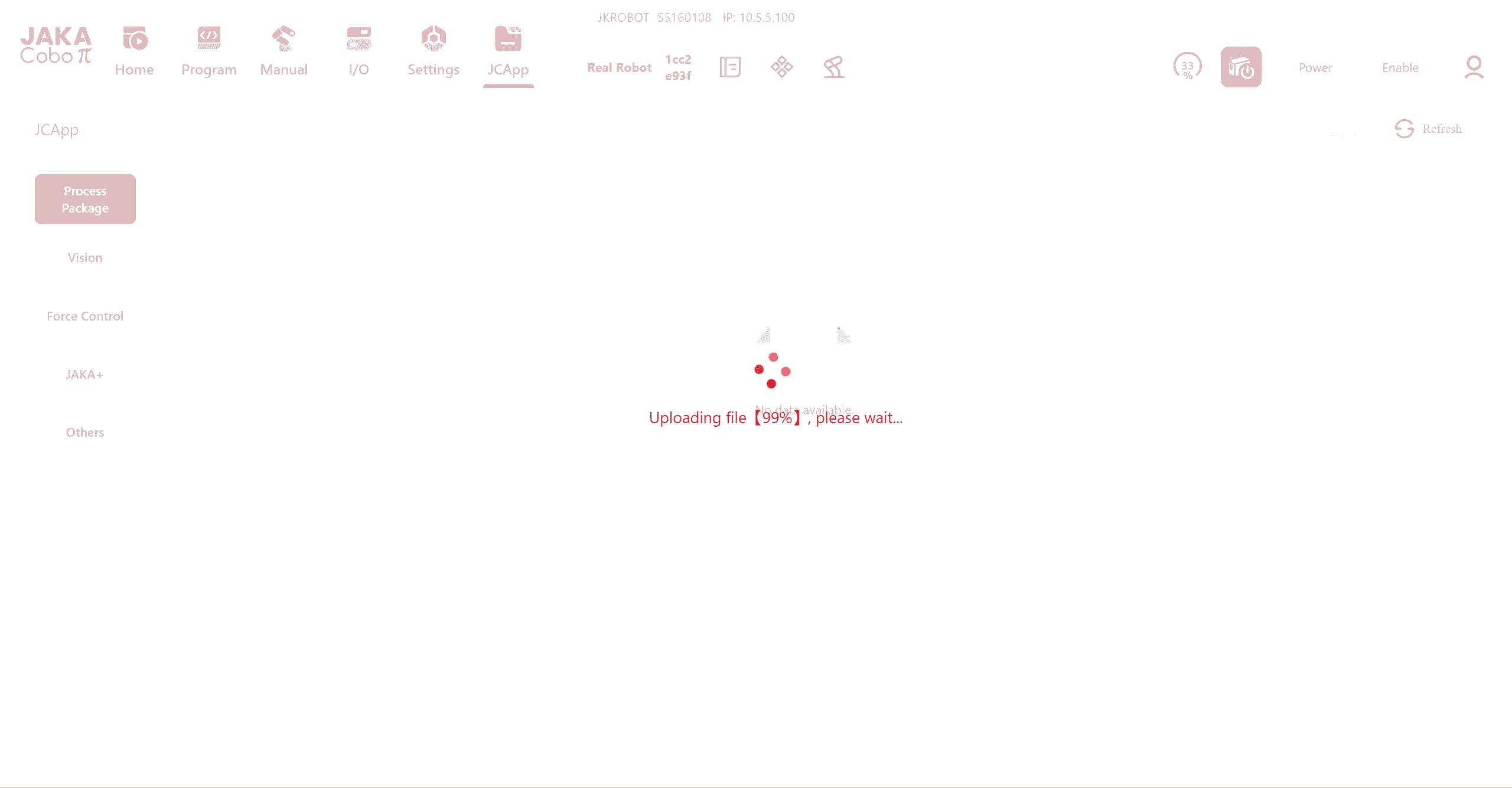

• Wait for the upload to complete.

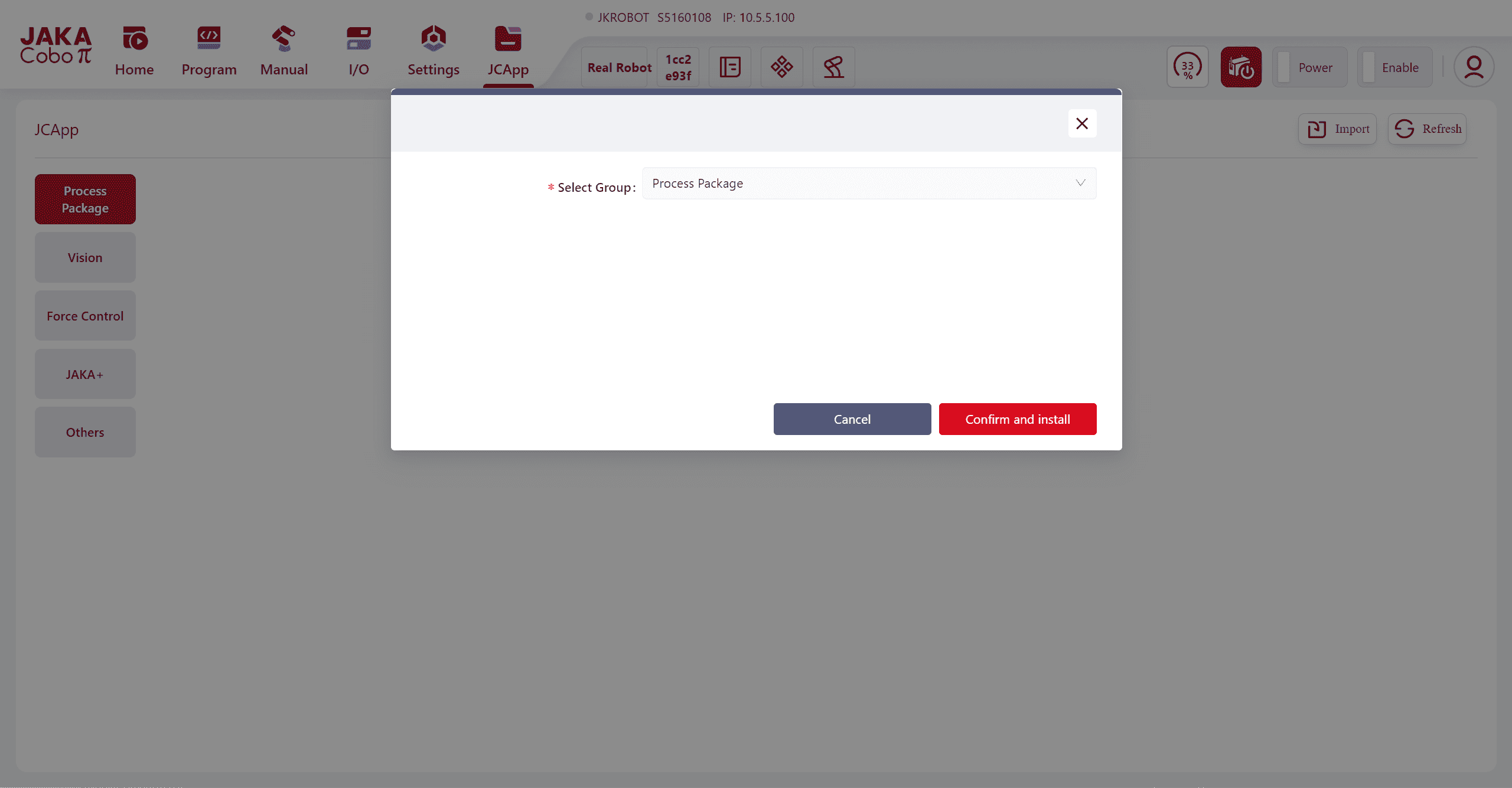

• After selecting a group (if no group is selected, the program will default to Others )， click Confirm and Install

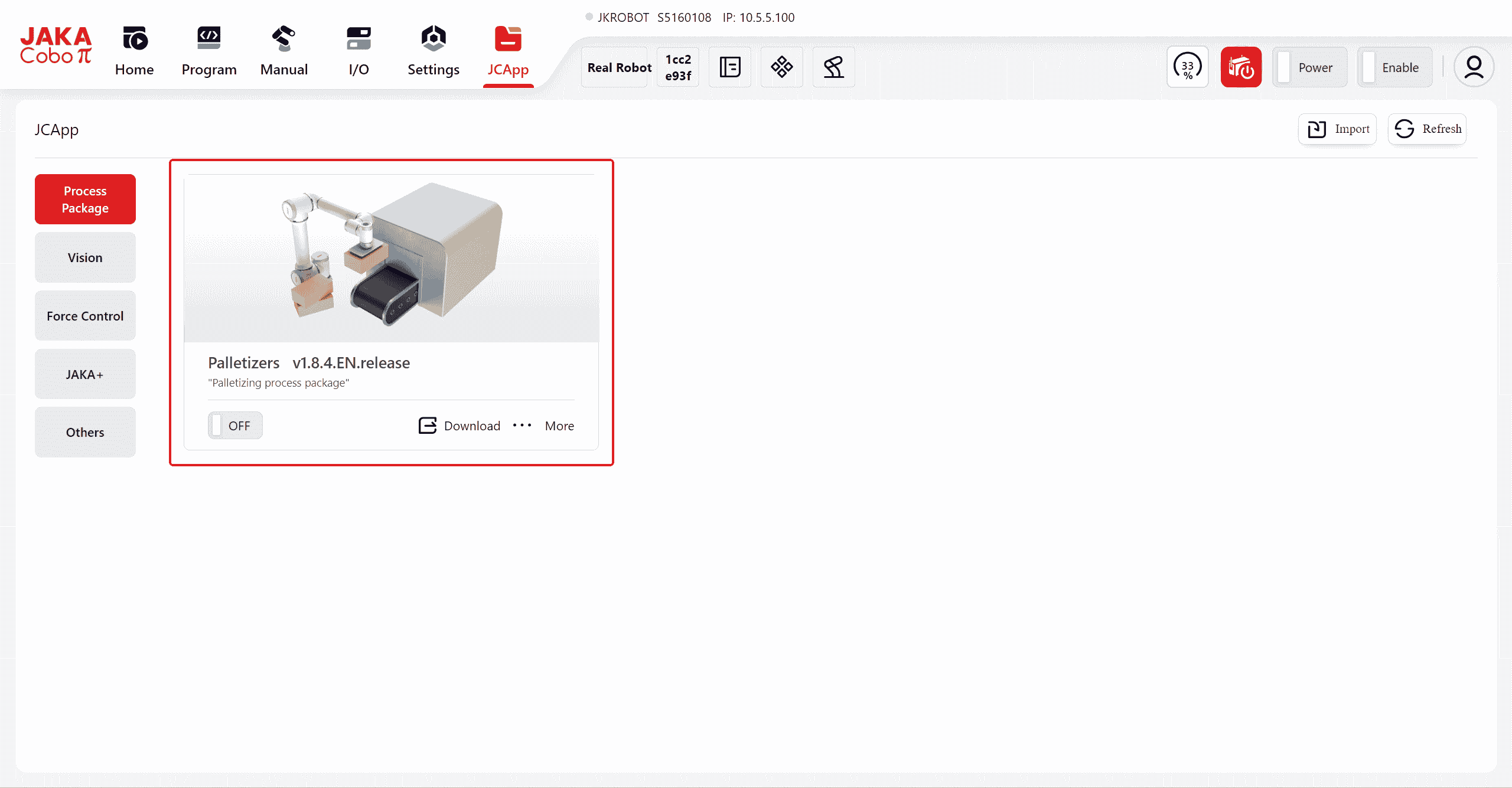

• Once installed, the program package will be displayed in the selected group.

• Use the buttons within the program package interface to perform various actions:：

  • ON/OFF : Toggle the application on or off.
  • Configure ：Access the parameter configuration page.
  • Export ：Export the current program package.

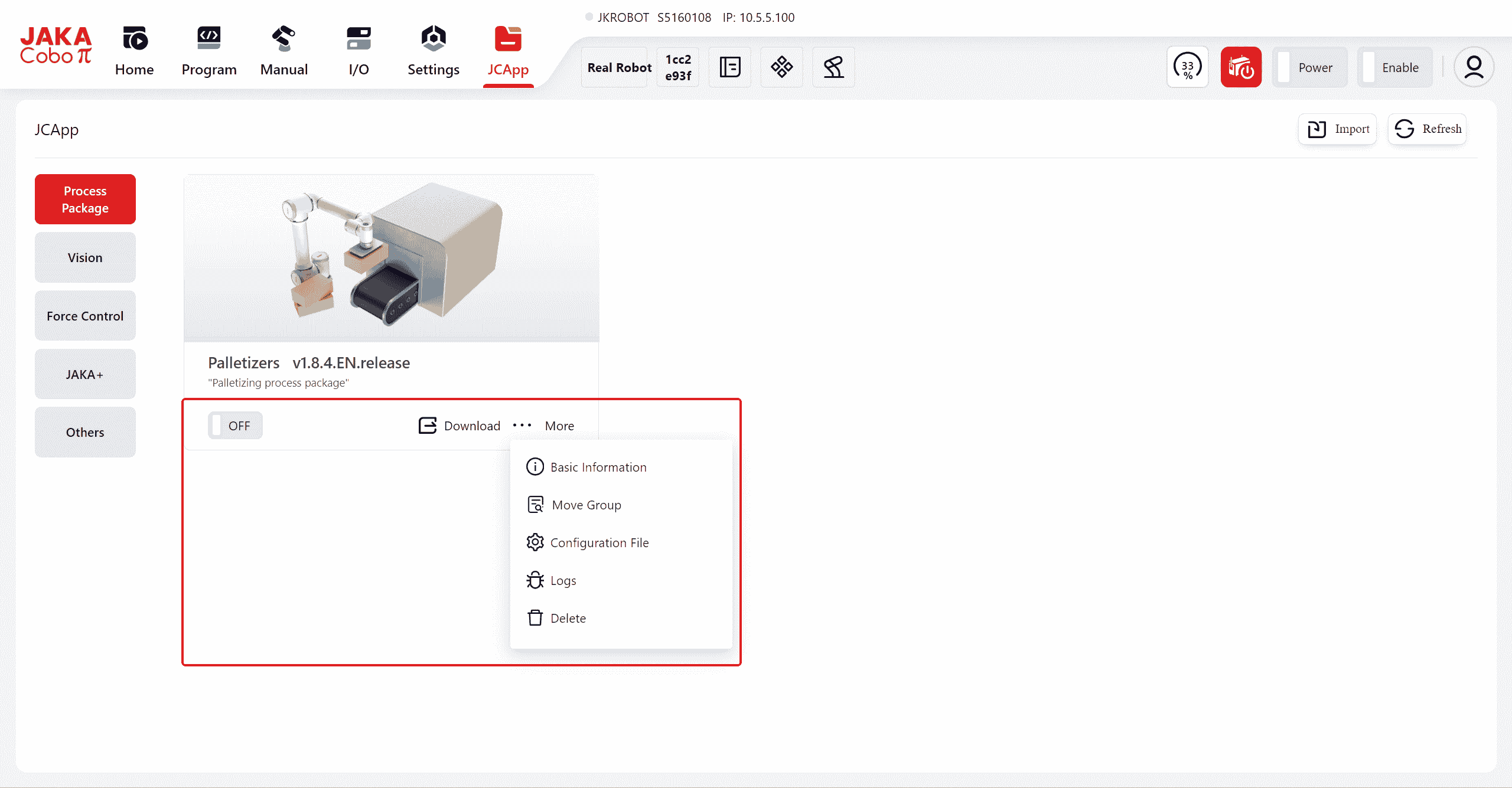

  • More ：View basic information, move to a different group, or delete the current program package.



Warning：

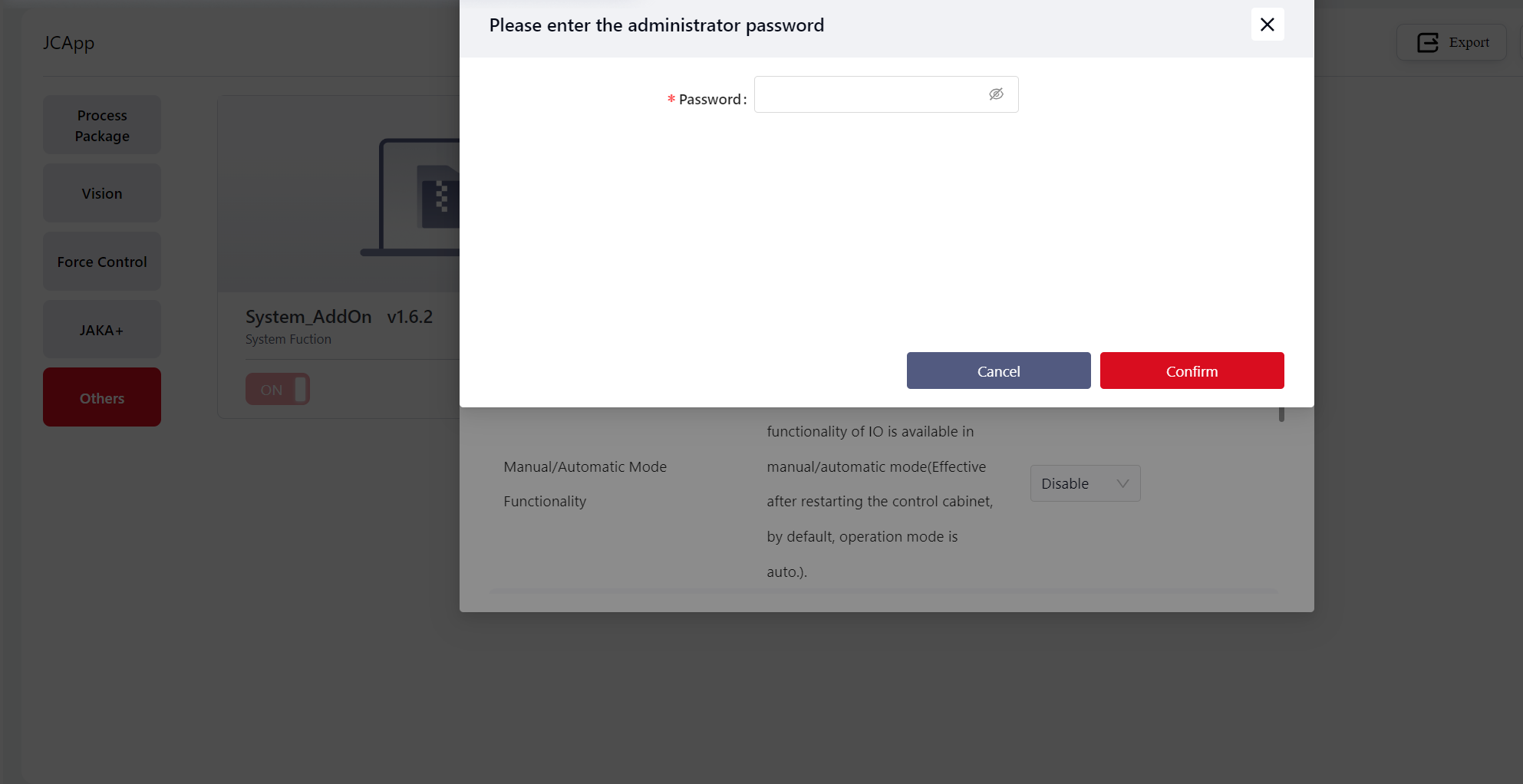

To ensure safety, in version 172, when modifying the System_AddOn related configuration in the Other options, the administrator password is required for secondary confirmation.

Version 172

In version 172, a new App Download entry has been added, which contains four Addon packages developed by JAKA. Users can choose the required package, download it locally, and then upload it for use. The upload steps are the same as in other versions.

Note：

Downloading is only possible when the device is connected to the internet.
