行业背景与特点
食品、日化等行业有很多码垛需求，随着电子商业的发展，个性化的产品种类非常多，对产线要求更加柔性。
传统的定制化的解决方案，占地大成本高。移动码垛工站具有快速方便的调试软件和方便移动的集成式小车，非常适合产线稼动率不高，需要经常换线生产，小批量多品种的产线。
解决方案

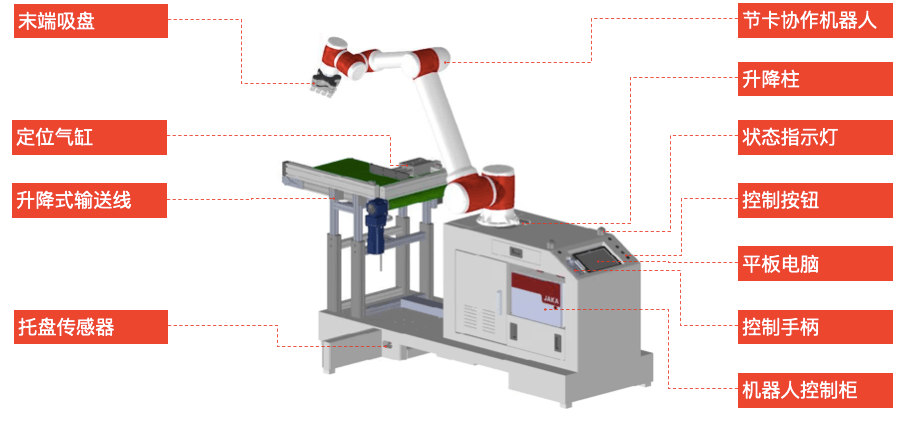

集成化机构
集成式设计，轻便灵活，方便移动

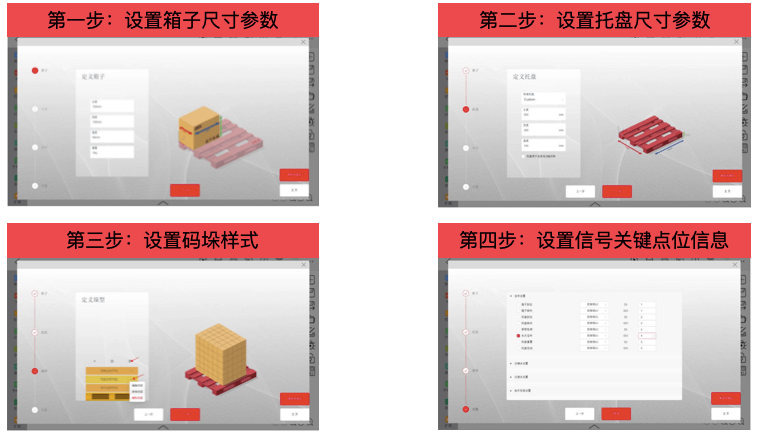

简单易用的软件
配置节卡码垛软件包，简化编程过程，让调试变的简单直观
多种安全防护装置
具有多种防护机制，安全可靠
除机器人自带碰撞防护功能外，还可增加节卡视觉防护系统进行主动防护，也可以增加安全光栅等第三方安全防护装置。

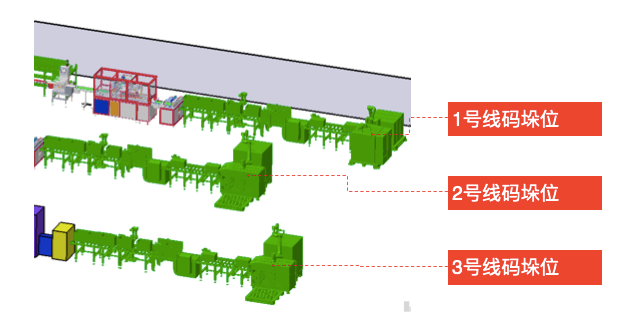

方便的换产流程
换产流程
1、码垛工站可以整体移动，在不同产线之间快速切换。
2、码垛站到位后，只需要重新接电源和气源，即可开机使用。
3、用节卡码垛包进行调试工作，可以快速把新产品与新垛型导入系统。
4、完成以上操作只需要1~2小时。
2、码垛站到位后，只需要重新接电源和气源，即可开机使用。
3、用节卡码垛包进行调试工作，可以快速把新产品与新垛型导入系统。
4、完成以上操作只需要1~2小时。
码垛站技术参数
最大机器人负载
16kg
最⼤工作半径
1713mm
最大堆垛高度（无升降柱模组时）
1.6米（含托盘）
最大堆垛速度
7箱/min
编程方式
图形化编程、拖拽编程
电控柜I/O端口
16个数字输入，16个数字输出，2个模拟输入或输出
气源
0.3~0.7MPa
电源
100-240VAC, 50-60Hz
额定功率
900W
设备尺寸
1600x2000x2000mm
重量
500kg
码垛站标准配置清单
机器人
JAKA Pro 16、JAKA Zu 12
机器人控制柜
标准CAB
示教器
PAD(节卡定制)
末端执⾏机构
节卡定制
升降式输送线
节卡定制
软件
码垛系统V1.0 软件包
码垛站可选配置清单
升降柱模组
节卡定制
视觉防护保护
VPS
应用场景
抛光打磨
保持产品加工精度的一致性，保证质量可靠，降低废品率
机器人代替操作工工作，操作工不直接接触危险的加工设备，避免工伤事故的发生
可再开发性，用户可根据不同样件进行二次编程，缩短产品改型换代的周期，减少相应的设备投资
贴胶
保持产品加工精度的一致性，保证质量可靠，降低废品率
机器人代替操作工工作，操作工不直接接触危险的加工设备，避免工伤事故的发生
可再开发性，用户可根据不同样件进行二次编程，缩短产品改型换代的周期，减少相应的设备投资
焊接
通用性：适配国内外主流焊机品牌
加载即用：在APP附加程序加载弧焊工艺包即可使用
方便配置：增加了设置界面，方便机器人与焊机通讯设置
安全信号互锁：机器人/焊机报警信号互锁，运行可靠
力控拖拽：3-18kg负载机器人都支持搭配力控传感器，实现更柔顺的力控拖拽效果，点位示教更便捷
调试模式：支持程序空运行不起弧，方便检验示教点
手动控制：支持手动起熄弧、送断气、步进/连续送退丝
赋能行业
- 汽车及零部件
- 金属塑料制品
- 新商业
- 科研教育
