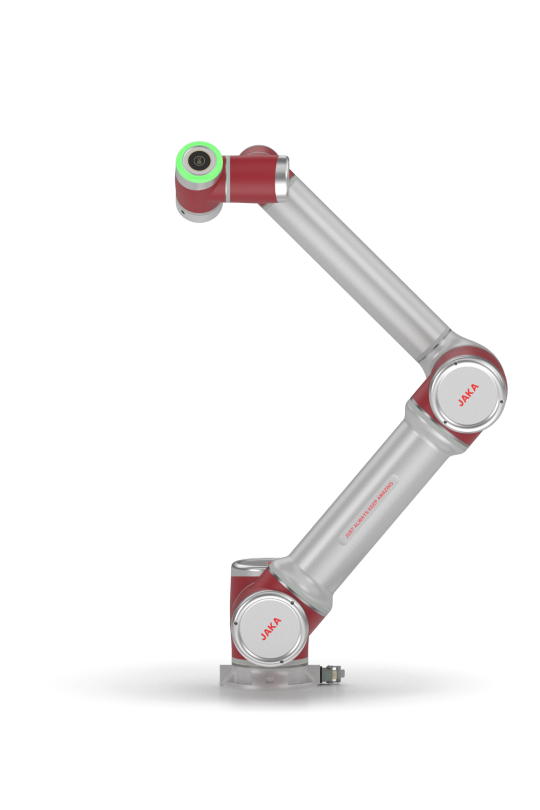

JAKA Zu12
Payload: 12 kg, Weight: 41 kg, Reach: 1327 mm
Human-robot-environment collaborative integration
Payload 12 kg, Self-weight 41 kg, Reach 1327 mm
Integrated joint design, easy to assemble and disassemble
Higher payload and longer arm span, competent for heavy manual labor tasks
Adhering to the concept of ""human-robot-environment collaborative integration"", high safety design eliminates the need for isolation fences
Contact UsHuman-robot-environment collaborative integration
Payload 12 kg, Self-weight 41 kg, Reach 1327 mm
Integrated joint design, easy to assemble and disassemble
Higher payload and longer arm span, competent for heavy manual labor tasks
Adhering to the concept of ""human-robot-environment collaborative integration"", high safety design eliminates the need for isolation fences
Product Features
suitable for heavy-duty tasks
06
suitable for heavy-duty tasks

Product Parameters
Weight (including cables)
41 kg (90.39 lb)
Repeatability
±0.03 mm (±0.00118 in)
Degree of freedom
Graphical programming, and freedrive programming
Programming
Mobile terminal (computer/pad/mobile phone)
Humidity
2 digital inputs/
2 digital outputs/
2 analog inputs
Footprint
188 mm (7.402 in)
l/0 ports
16 digital inputs, 16 digital outputs, 2 analog inputs or outputs
Communication mode
TCP/IP,Modbus TCP,Modbus RTU, Profinet, Ethemet/lP
Power supply
100-240VAC,50-60Hz
Size
410×307×235 (mm) (W×H×D)
Series Products
Application Scenario
Loading and Unloading
Simple programming allows for easy control of the robot, maximizing the replacement of labor and freeing up workforce.
Enhances production efficiency and product quality.
Quickly complete secondary deployment of the production line, achieving efficient, high-quality, and flexible machine tending by robots.
Application Details Packing
Can spray complex curves with precision control to save paint .
High-precision repeatability ensures product quality, reducing operational costs and minimizing reworked parts and scrapped parts.
Replaces manual labor, reduces management costs, effectively improves production rate
Application Details Palletizing
Achieves automated palletizing, improves production efficiency, and enhances the working environment for operators.
A single robot can manage multiple production lines, significantly reducing costs
Compact structure, small footprint, high integration, and lightweight, effectively solving manual palletizing tasks on-site for customers.
Application Details Handling
Ensure consistent processing precision, guarantee reliable quality, and reduce the defect rate.
Highly reprogrammable, allowing users to adapt programming for different workpieces, shortening the product modification cycle and reducing associated equipment investment.
The robot replaces manual operators, minimizing direct contact with hazardous processing equipment, thus reducing the occurrence of accidents.
Application Details
