In the field of robotics, "Kinematics" is the study of motion without considering the forces that cause it. For a manipulator robot arm, kinematics defines the relationship between the positions of the robot's joints and the location of its end-effector (the tool) in space. Central to this concept is the "Degrees of Freedom" (DoF). A robot's DoF determines its agility and its ability to navigate complex industrial environments. While a 3-axis system can move through 3D space, it is only with six degrees of freedom that a professional industrial cobot achieves "full spatial maneuverability"—the ability to reach any point from any orientation.

The Anatomy of 6 Degrees of Freedom

A standard industrial cobot replicates the kinematic structure of a human arm. Each "degree of freedom" corresponds to an independent joint or axis of motion. To understand how these axes work together, they are typically divided into two functional groups:

1. The Positioning Axes (Axes 1, 2, and 3)

These joints function like the human shoulder and elbow. Their primary role is to move the robot's wrist to a specific coordinate ($x, y, z$) within its working radius.

• Axis 1 (Base): Provides 360° rotation, allowing the robot to service multiple stations around its center.
• Axis 2 (Lower Arm): Controls the forward and backward extension.
• Axis 3 (Upper Arm): Controls the vertical reach and height.

2. The Orientation Axes (Axes 4, 5, and 6)

Often referred to as the "wrist," these joints determine the angle at which the tool approaches the workpiece. Without these three axes, a robot could reach a point but would be unable to tilt, roll, or rotate its tool to fit into a tight space.

• Axis 4 (Wrist Rotation): Rotates the forearm.
• Axis 5 (Wrist Pitch): Tilts the tool up and down.
• Axis 6 (Wrist Roll): Spins the tool 360°, essential for tasks like screwdriving or circular welding.

Why DoF is Critical for Production Throughput

The versatility of a manipulator robot arm with 6 DoF allows it to solve "singularities"—mathematical points where a robot's joints align in a way that restricts movement. With six axes, the robot has the mathematical redundancy to "elbow" its way around obstacles, such as safety pillars or existing machinery, without stopping the production line. This fluid motion is what allows an industrial cobot to maintain high cycle times in crowded factory layouts.

Reach and Power: The JAKA Pro Series

At JAKA, we have optimized the kinematics of the JAKA Pro series to thrive in heavy-duty, high-precision environments. While the kinematics provide the motion, our "Embodied Intelligence" provides the protection. The Pro series features IP68-rated joints, ensuring that the complex internal encoders and motors are completely sealed against water, oil, and dust.

For applications requiring the ultimate combination of reach and payload, the JAKA Pro16 stands at the pinnacle of our lineup.

Technical Kinematics of the JAKA Pro16:

• Massive Working Radius: With a reach of 1713mm, the JAKA Pro16 has one of the largest envelopes in the cobot industry, allowing it to perform 6-axis maneuvers across expansive workspaces.

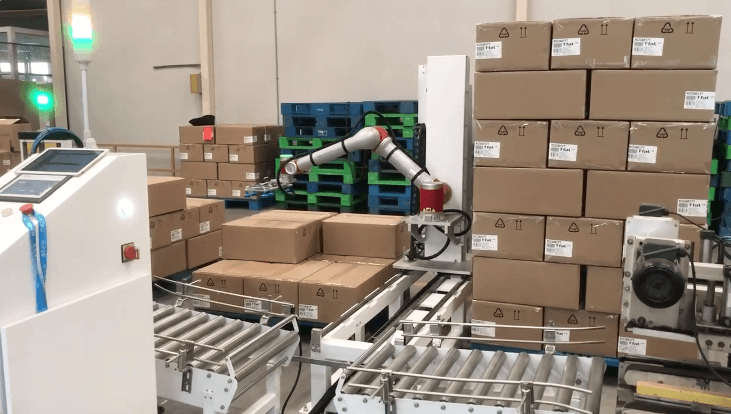

• High Payload Capacity: It handles up to 16kg, making it ideal for heavy-duty manipulator robot arm tasks like palletizing large crates or tending heavy CNC parts.
• Sub-Millimeter Repeatability: Despite its size, it maintains a repeatability of ±03mm, ensuring that its 6 DoF are utilized with extreme surgical precision.
• Environmentally Resilient: Capable of operating in temperatures from -10°C to 50°C, the JAKA Pro16 maintains its kinematic accuracy even in extreme thermal conditions that would cause lesser robots to drift.

By integrating the JAKA Pro16 into your production line, you are not just adding a machine; you are adding a highly agile, 6-axis expert capable of working 24/7 in the toughest conditions. Controlled wirelessly via the JAKA App, our systems make understanding and commanding complex kinematics as simple as a few taps on a screen. At JAKA, we provide the reach, the power, and the intelligence to move your business forward.
