In the world of high-precision manufacturing, the finishing stage is often where the most value is added—and where the most risk resides. Polishing is a notoriously difficult process to automate because it requires more than just following a pre-set path; it requires the ability to "feel" and adapt to the surface of a workpiece. Whether you are finishing a delicate smartphone casing or a heavy-duty automotive part, the transition to a polishing robot is the most effective way to ensure consistency, safety, and superior quality.

What Makes a Polishing Robot Different?

A standard industrial robot moves from one coordinate to another with rigid precision. However, a polishing robot must operate under "force control." This means the robot doesn't just move through space; it monitors and maintains a specific amount of pressure against the object it is polishing.

If the robot applies too much pressure, it risks "burning" the surface or warping the material. If it applies too little, the finish will be uneven. Modern collaborative robot systems use advanced sensors to adjust this pressure in real-time, allowing them to follow complex 3D contours—such as the curved edges of a laptop or the intricate geometry of an engine valve—with human-like sensitivity.

3 Core Benefits of Robotic Polishing

1. Uniformity Across Every Unit: Human workers, no matter how skilled, eventually face fatigue. Their pressure and angle will vary slightly over an eight-hour shift. A robot delivers the exact same finish on the 500th unit as it did on the first, ensuring that "batch variance" becomes a thing of the past.
2. Health and Workplace Safety: Polishing generates significant amounts of fine dust (metal, plastic, or wood) and noise. By delegating these tasks to a collaborative robot, you remove employees from these hazardous conditions, allowing them to transition into roles as "robot supervisors" who manage the quality and flow of the line.

Significant Yield Improvement: Precision force control minimizes the risk of over-polishing, which is a leading cause of scrapped parts in the electronics and medical industries. Reducing your scrap rate by even 1–2% can result in a rapid return on investment.

The JAKA S Series: Designed for the "Sense of Touch"

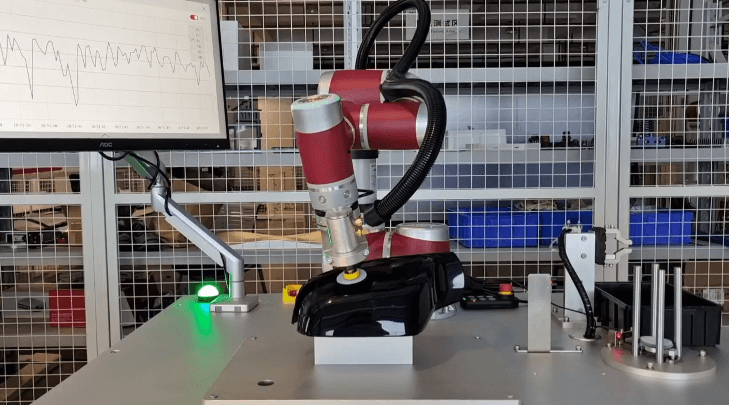

At JAKA, we have moved beyond simple motion with our JAKA S series. While many cobots require external sensors to "feel" pressure, the JAKA S series is built with a high-accuracy industrial force sensor integrated directly into the end of the arm. This "Embodied Intelligence" allows the robot to sense forces from multiple directions with exceptional response times.

For large-scale finishing and heavy-duty industrial tasks, the JAKA S12 is our premier solution.

Key Features of the JAKA S12 for Polishing:

• 12kg Payload & 1327 mm Reach: The S12 provides the strength and radius needed to polish large automotive panels or multiple smaller parts in a single cycle.
• IP65 Protection: Polishing is a "dirty" job. The JAKAS12 features an IP65 rating, making it completely resistant to the dust and water spray common in finishing environments.
• Constant Force & Normal Tracking: Through the JAKA App, operators can set the robot to maintain a constant force perpendicular to the surface, regardless of the angle, ensuring a perfect finish on every curve.
• Visualize Real-Time Pressure: Our software provides a continuous real-time pressure graph, allowing quality managers to verify that every part has been processed according to spec.

Seamless Deployment with JAKA

The beauty of a collaborative robot is that it doesn't require a total factory redesign. At JAKA, our systems are "fence-free" and can be integrated into your current manual stations in a matter of hours. With accurate repeatability and the intuitive wireless control of our App, the JAKA S series turns the "dark art" of manual polishing into a precise, scientific, and highly profitable stage of your production.
