In the world of industrial automation, the 6 axis robot arm is often considered the gold standard for flexibility. Designed to replicate the intricate movements of a human arm, these machines have revolutionized how factories approach complex tasks. But what exactly gives them this "superpower" of versatility? The secret lies in their kinematic structure—a series of rotating joints that allow the robot to reach almost any point within its workspace from any orientation. As a jointed arm robot, it provides the agility needed for everything from precision medical assembly to heavy-duty palletizing.

The Mechanics of 6 Degrees of Freedom

The term "6-axis" refers to the number of independent joints, or degrees of freedom (DoF), the robot possesses. Each joint represents a specific axis of motion, typically categorized into two groups: the major axes (1, 2, and 3) and the minor axes (4, 5, and 6).

• The Major Axes (Base and Lower Arm): These joints are responsible for the robot's overall reach. Axis 1 allows the robot to rotate at the base, while Axis 2 and 3 control the forward, backward, and vertical extension.
• The Minor Axes (The Wrist): This is where the true versatility happens. Axes 4, 5, and 6 function as a mechanical wrist. They allow the "hand" of the robot (the End-of-Arm Tooling) to pitch, roll, and yaw.

This combination allows a jointed arm robot to approach a workpiece from above, below, or even from behind. Unlike a 4-axis robot, which is limited to keeping its tool perpendicular to the ground, a 6-axis system can tilt a welding torch, angle a spray gun, or rotate a part during an inspection, mimicking the fluid motion of a human technician.

Why Versatility Matters in Modern Production

The primary advantage of a 6 axis robot arm is its ability to handle "high-mix" production. Because it is not limited to a single plane of motion, the same robot can be programmed to perform multiple different tasks throughout the day. For example, a robot might spend the morning performing CNC machine tending—loading parts at an angle into a chuck—and then be redeployed in the afternoon for complex deburring or polishing of curved surfaces. This adaptability reduces the need for specialized, single-purpose machinery, saving both floor space and capital investment.

Redefining Flexibility with JAKA Zu Series

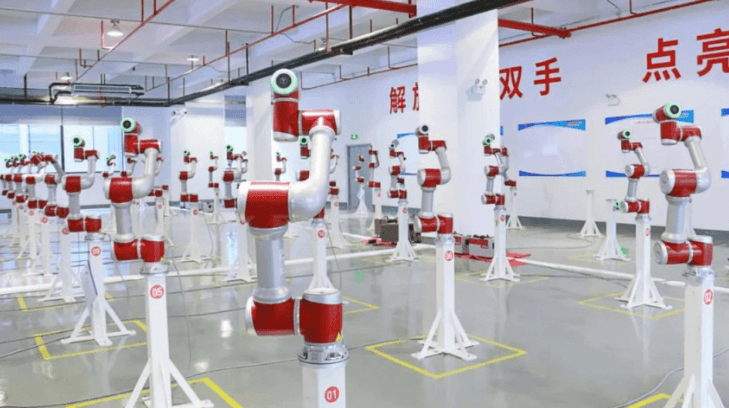

At JAKA, we have taken the inherent versatility of the jointed arm robot and enhanced it with collaborative safety and intelligent control. Our JAKA Zu series is designed to be the most adaptable teammate on your production line. While traditional industrial arms are heavy and difficult to move, our 6-axis cobots are lightweight and feature a compact footprint that allows for rapid redeployment across your facility.

For those requiring maximum strength without sacrificing this signature 6-axis agility, the JAKA Zu18 is our premier solution. With an 18kg payload and a reach of 1073mm, the JAKA Zu18 handles heavy lifting while maintaining a repeatability of ±0.03mm. At JAKA, we have replaced complex coding with the wireless JAKA App, allowing you to master 6-axis path planning through an intuitive graphical interface. Whether you are automating a small workshop or a massive assembly plant, our "Embodied Intelligence" ensures your 6 axis robot arm is always ready for the next challenge.
