In the landscape of industrial automation, the efficiency of a production line often hinges on two critical technical metrics: load capacity and duty cycle. While a 6 axis robot arm is celebrated for its human-like dexterity, its real-world performance is dictated by how much weight it can carry and how long it can operate at peak intensity without mechanical degradation. For manufacturers, understanding these specifications is not just about choosing a machine; it is about ensuring long-term reliability and optimizing the Return on Investment (ROI) for every handling robot deployed.

Load Capacity: More Than Just Part Weight

The load capacity, or payload, of an industrial robot arm refers to the maximum weight the robot can manipulate within its full range of motion. However, a common mistake in automation planning is only considering the weight of the workpiece itself. In practice, the total load includes the workpiece plus the End-of-Arm Tooling (EOAT), such as grippers, sensors, and quick-change modules.

Furthermore, the "load offset"—the distance between the center of gravity of the load and the robot’s tool flange—is crucial. As the distance increases, the torque applied to the robot’s joints increases exponentially. If a robot is pushed to its absolute weight limit with a significant offset, its repeatability may suffer, and the lifespan of its internal motors could be shortened. Professional integration requires calculating these moments of inertia to ensure the robot remains stable during high-speed transitions.

The Duty Cycle: Measuring Operational Stamina

While load capacity defines strength, the duty cycle defines endurance. In robotics, the duty cycle is the ratio of time a robot is actively moving versus the time it is stationary or cooling down within a specific period. A robot running at a "100% duty cycle" is operating continuously, which generates significant heat in the joint actuators.

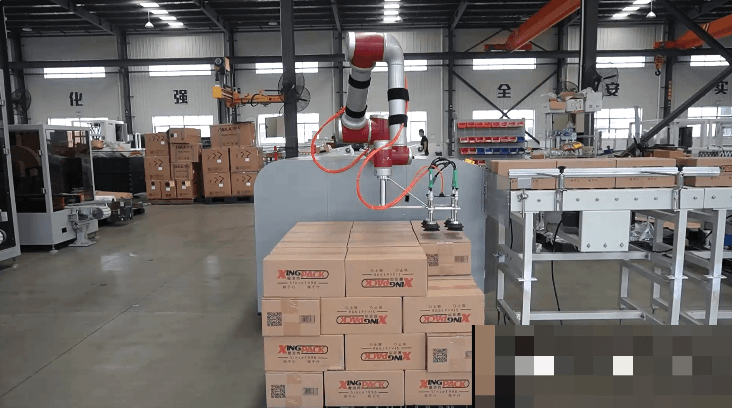

Operating a handling robot beyond its recommended duty cycle can lead to thermal expansion, which affects precision, or even trigger automatic shutdowns to protect the hardware. For high-intensity applications like high-speed packaging or heavy-duty palletizing, selecting a robot with high-efficiency motors and superior heat dissipation is essential to maintain 24/7 production without interruption.

Precision and Durability with JAKA Zu Series

At JAKA, we have engineered our robots to provide industry-leading power-to-weight ratios, ensuring our customers don't have to sacrifice agility for strength. Our JAKA Zu series is a testament to this balance. For instance, the JAKA Zu12 is a premier choice for heavy-duty tending, offering a 12 kg load capacity and a massive 1327 mm working radius. Despite its strength, the arm itself weighs only 41kg, making it significantly easier to deploy than a traditional 6 axis robot arm.

We prioritize transparency in performance. Every JAKA robot is built with integrated joints that feature built-in torque feedback, allowing the system to monitor internal stress in real-time. This "Embodied Intelligence" ensures that our robots, from the compact Zu3 to the robust Zu30, operate safely within their duty cycle limits. With the JAKA App, users can monitor operational data wirelessly, ensuring their handling robot maintains its precise repeatability over years of service. At JAKA, we provide the technical precision and structural integrity your smart factory demands.
