In the rapidly evolving landscape of automation, selecting the correct robot arm type is the cornerstone of a successful production strategy. Each robotic configuration is engineered with specific mechanical strengths, work envelopes, and degrees of freedom. While a high-performance industrial robot arm can significantly boost throughput, its effectiveness depends entirely on how well its geometry aligns with the task at hand. Understanding the fundamental differences between 6-axis, SCARA, and Delta robots is essential for any facility looking to optimize its manufacturing floor.

The 6-Axis Articulated Robot: The Versatile All-Rounder

The 6-axis robot is the most common robot arm type found in modern factories. Designed to mimic the human arm, it possesses six degrees of freedom, allowing it to move through the X, Y, and Z planes while also managing roll, pitch, and yaw movements.

This unparalleled dexterity makes it the ideal candidate for complex processes such as welding, painting, and intricate assembly where parts must be approached from various angles. Its spherical work envelope allows it to reach behind itself or under obstacles, providing a level of flexibility that other configurations simply cannot match.

SCARA: The Specialist for Planar Tasks

SCARA stands for Selective Compliance Articulated Robot Arm. Unlike the spherical reach of a 6-axis arm, the SCARA operates within a cylindrical work envelope. It is highly rigid in the vertical (Z) axis but remains compliant in the horizontal (X-Y) axes.

This unique rigidity makes SCARA robots the preferred choice for high-speed pick-and-place, screw driving, and electronics assembly. Because they have fewer joints and a simpler motion path, they can achieve incredible repeatability (often up to ±0.01mm) and faster cycle times for tasks that take place on a flat plane.

Delta: The Master of High-Speed Sorting

Easily recognizable by its "spider-like" appearance, the Delta robot consists of three or four arms connected to a single base above the workspace. Delta robots are parallel manipulators, meaning the heavy motors are located in the stationary base rather than the moving arms.

This lightweight design allows for extreme acceleration and speed. Delta robots excel in the food, pharmaceutical, and consumer goods sectors, where they are used for high-speed sorting and packaging of lightweight items. If your priority is moving small parts at lightning speed, the Delta is the superior robot arm type.

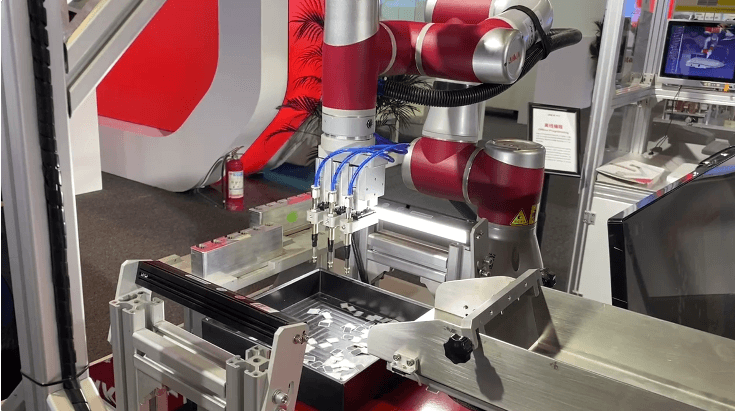

Precision and Flexibility with JAKA 6-Axis Solutions

At JAKA, we have focused our expertise on perfecting the 6-axis collaborative industrial robot arm to provide the ultimate balance of power and agility. While traditional Delta or SCARA robots serve niche planar roles, our JAKA Zu and Pro series offer a "general intelligence" that can handle nearly any application—from precision 3C assembly to heavy-duty palletizing.

What sets JAKA apart is our commitment to "Embodied Intelligence." Every industrial robot arm we produce features precise repeatability and a compact, fence-free design. With the wireless control of the JAKA App and our intuitive graphical programming, we have removed the complexity of 6-axis motion. Whether you need the 18kg payload capacity of the JAKA Zu 18 or the high-protection capabilities of the Pro series, JAKA Robotics delivers the versatile "human-like" motion your smart factory needs to stay ahead.
