The transition to "no-code" automation has significantly lowered the barrier to entry for collaborative robot implementation. However, even with an intuitive graphical interface, the complexity of real-world manufacturing can lead to subtle programming oversights. When using the JAKA Lumi—a training-focused platform designed to facilitate rapid deployment of a JAKA cobot—understanding the underlying logic of coordinate systems and command structures is essential to maintaining a seamless and error-free production line.

Common Pitfalls in Graphical Programming

One of the most frequent errors in JAKA cobot programming involves the "order of operations" for non-immediate commands. For example, setting a digital output (DO) during a movement requires the command to be placed between two specific movement blocks with arc transitions enabled. If these conditions are not met, the signal may fail to trigger at the intended moment, leading to synchronization issues with grippers or external conveyors.

Another common challenge is improper coordinate system management. A collaborative robot often switches between a World Coordinate System and a Tool Coordinate System (TCP). Failing to verify which system is active before a move can result in the robot drifting toward unintended positions. Additionally, when using circular or arc movements, operators must ensure that the number of motion circles is correctly defined as an integer. A value of zero creates a simple arc, while a value of one generates a full circle; inputting non-integers or incorrect logic here can trigger motion planner errors.

Best Practices for a Robust JAKA Program

At JAKA, we have engineered our platform to be as user-friendly as possible, but we always advocate for a structured approach to program design. Our "Smart, Simple, Small" philosophy is best supported when users follow a modular programming strategy:

1. Establish a Homing Sequence: Always begin your program with a dedicated homing routine that checks the robot's current position and clear-path safety before any high-speed movement begins.
2. Utilize Subprograms: Keep your main program clean by using it as a high-level map. Detailed I/O commands and complex path data should reside in subprograms to make troubleshooting more efficient.
3. Validate with Simulation: Before running a task on the physical hardware, use the Simulation Model Area within the app to visualize the trajectory and identify potential joint limit violations or collisions.

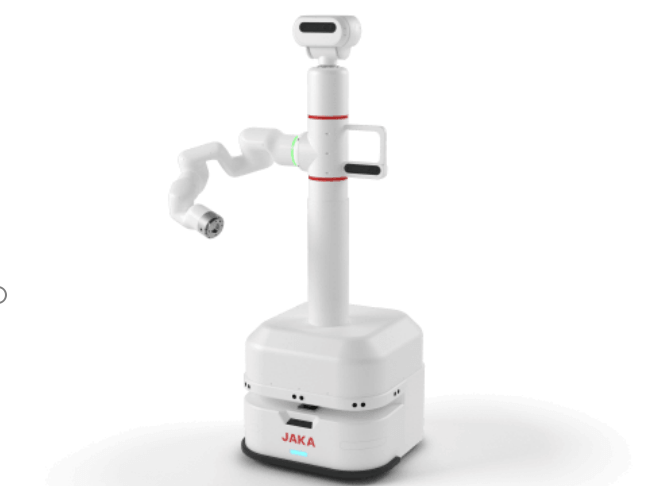

We have integrated advanced safety features into the JAKA experience, such as the "Floating Jogging" mode and "One-Key Align" for the flange posture, to reduce manual teaching errors. The JAKA Lumi series is specifically designed to bridge the gap between education and industrial application, offering a safe environment to master these skills. Our wireless teaching app allows you to drag command blocks—like loops, logic gates, and variables—directly into the workspace, providing a clear visual representation of your automation logic.

By choosing a JAKA collaborative robot, you benefit from a system that is designed to grow with your expertise. We continue to refine our software to ensure that every JAKA cobot remains a reliable and easy-to-manage asset. By following these programming guidelines, you can ensure that your production remains optimized, safe, and entirely error-free.
