In the landscape of modern automation, the ability for a machine to "feel" its environment has transitioned from a high-end luxury to a standard industrial requirement. While traditional robots rely on pre-programmed coordinates, an articulated robot equipped with a force/torque (F/T) sensor gains a sense of touch that allows it to adapt to physical resistance in real-time. By integrating these sensors directly into the mounting flange—the interface between the robot arm and the tool—manufacturers can unlock levels of precision and safety that were previously impossible.

The Technical Advantage of End-of-Arm Force Perception

A 6-axis force/torque sensor measures both linear forces (F_x, F_y, F_z) and rotational torques (T_x, T_y, T_z) acting upon the robot’s tool. When these sensors are mounted on the flange, they provide the most accurate data possible by isolating the forces occurring at the point of contact. This is critical for applications such as constant-pressure sanding, delicate component insertion, or high-precision screwdriving, where even a few newtons of unintended force could damage a workpiece.

Beyond precision, flange-integrated sensing enhances the "intelligence" of the workspace. It allows the system to perform active gravity compensation, effectively "taring" the weight of the end-effector so the robot only perceives the external forces applied by the task. This leads to smoother hand-guiding and more responsive collision detection, ensuring the collaborative robot remains a safe partner for human operators.

Smarter Force Control with JAKA S Series

At JAKA, we have streamlined the path to advanced force perception by eliminating the need for bulky external add-ons. Our engineering team recognizes that every millimeter and gram added to the tool flange affects the robot's payload and agility. This is why we developed the JAKA S series, which features a high-accuracy force sensor built directly into the hardware.

The JAKA S series provides multi-dimensional force perception with an impressive accuracy of 1% FS and a distinguishability of 0.1N. By integrating the sensor into the articulated robot structure, we have enhanced the system's sensitivity while maintaining a clean, cable-free profile. This built-in intelligence allows our robots to perform "drag force reduction," making the teaching process remarkably smooth for the operator.

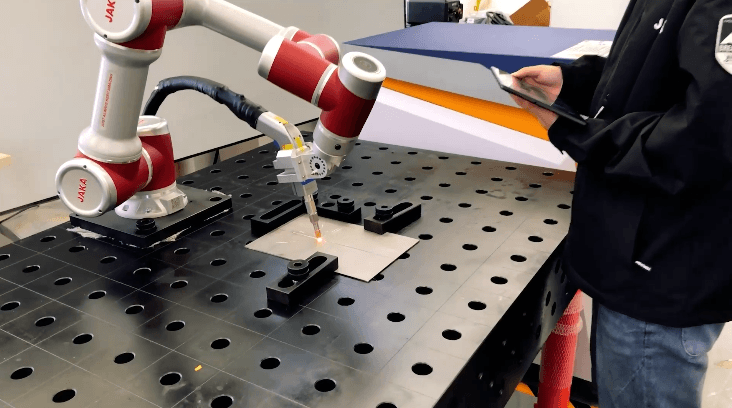

Whether you are performing complex assembly in the 3C electronics sector or industrial welding, our technology ensures constant force accuracy across every axis. Every JAKA collaborative robot is designed to be easily configured via our app, providing real-time force value displays that simplify debugging. By choosing JAKA, you are investing in a system that doesn't just follow a path—it understands the touch, ensuring a more productive and reliable production line.
