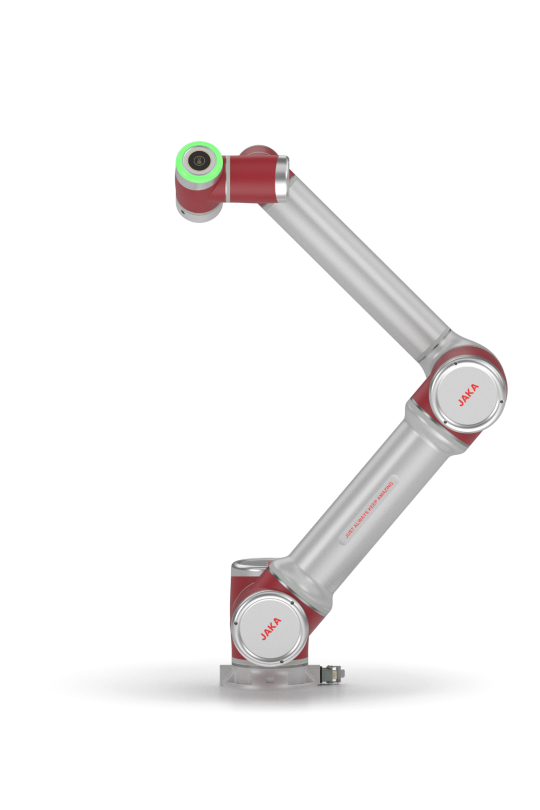

JAKA Zu12
Payload: 12 kg, Weight: 41 kg, Reach: 1327 mm
Designed for higher payload, larger reach, suitable for heavy-duty tasks, such as machine tending, palletizing and packing. Perfect balance between payload and reach.
Contact Us
Designed for higher payload, larger reach, suitable for heavy-duty tasks, such as machine tending, palletizing and packing. Perfect balance between payload and reach.
Product Parameters
Maximum payload
12 kg (26.4 lb)
Weight (incl. cables)
41 kg (90.39 lb)
Reach
1327 mm (52.2 in)
Accuracy
±0.03 mm (±0.00118 in)
Programming
Graphic programming, drag & teach, SRCI, offline programming
Programming interface
Any graphical device (PC, tablet, or smartphone)
Nominal power consumption
500W
IP Rating
IP54
Tool I/O Interfaces
2 digital inputs/ 2 digital outputs/ 2 analog inputs
Base Diameter
188 mm (7.402 in)
Communication Protocols
TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP
Power Supply
100-240VAC, 50-60Hz
Size
410×307×235 (mm) (W×H×D)
Weight
18 kg
IP Rating
IP44
I/O Interfaces
16 digital inputs, 16 digital outputs, 2 analog inputs or outputs
Basic parameters
Specifications
Control cabinet
Series Products
Application Scenario
Loading and Unloading

Simple programming allows for easy control of the robot, maximizing the replacement of labor and freeing up workforce.

Enhances production efficiency and product quality.

Quickly complete secondary deployment of the production line, achieving efficient, high-quality, and flexible machine tending by robots.

Application Details
Packing

Can spray complex curves with precision control to save paint .

High-precision repeatability ensures product quality, reducing operational costs and minimizing reworked parts and scrapped parts.

Replaces manual labor, reduces management costs, effectively improves production rate

Application Details
Palletizing

Achieves automated palletizing, improves production efficiency, and enhances the working environment for operators.

A single robot can manage multiple production lines, significantly reducing costs

Compact structure, small footprint, high integration, and lightweight, effectively solving manual palletizing tasks on-site for customers.

Application Details
Handling

Ensure consistent processing precision, guarantee reliable quality, and reduce the defect rate.

Highly reprogrammable, allowing users to adapt programming for different workpieces, shortening the product modification cycle and reducing associated equipment investment.

The robot replaces manual operators, minimizing direct contact with hazardous processing equipment, thus reducing the occurrence of accidents.

Application Details
