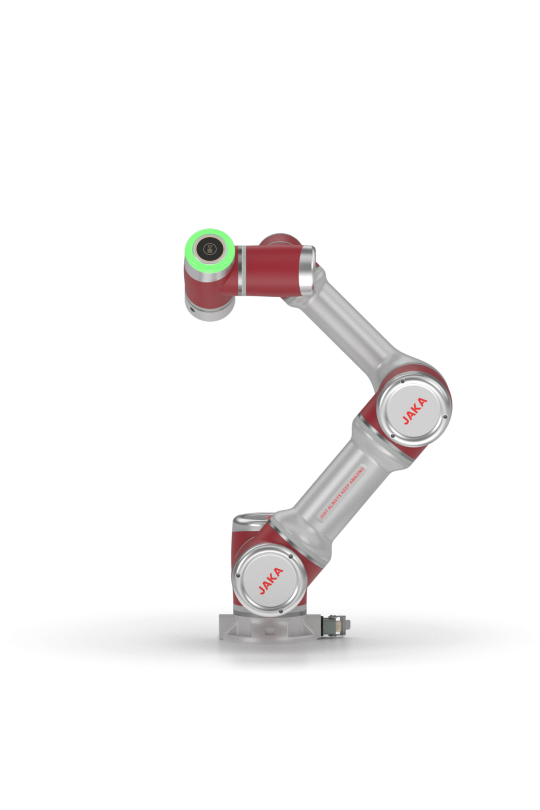

JAKA Zu7
Payload: 7 kg, Weight: 22 kg, Reach: 819 mm
Designed for continuous, high-performance automation and commonly used in assembly lines and pick & place applications. Flexible mounting at any angle — horizontal, vertical, sloped, or overhead. High load-to-weight ratio and torque feedback collision detection. Perfect balance between payload and reach.
Contact Us
Designed for continuous, high-performance automation and commonly used in assembly lines and pick & place applications. Flexible mounting at any angle — horizontal, vertical, sloped, or overhead. High load-to-weight ratio and torque feedback collision detection. Perfect balance between payload and reach.
Product Features
Integrated joint
01
Easy assembly
02
Easy disassembly
03
High load-to-weight ratio
04
balancing flexibility and strength
05
Integrated joint
Easy assembly
Easy disassembly
High load-to-weight ratio
balancing flexibility and strength
Product Parameters
Payload
7 kg (15.4 lb)
Weight (including cables)
22 kg (48.50 1b)
Reach
819 mm (32.2 in)
Repeatability
±0.02 mm (0.00079 in)
Degree of freedom
Graphical programming, and freedrive programming
Programming
Mobile terminal (computer/pad/mobile phone)
Typical consumption
350W
IP classification
IP54
Humidity
2 digital inputs/ 2 digital outputs/ 2 analog inputs
Footprint
158 mm (5.079 in)
IP classification
IP44
l/0 ports
16 digital inputs, 16 digital outputs, 2 analog inputs or outputs
Communication mode
TCP/IP,Modbus TCP,Modbus RTU, Profinet, Ethemet/lP
Power supply
100-240VAC,50-60Hz
Size
410×307×235 (mm) (W×H×D)
Weight
15.4 kg (33.95 lb)
Basic Parameter
Specifications
Control cabinet
Series Products
Application Scenario
Loading and Unloading

Enhances production efficiency and product quality.

Quickly complete secondary deployment of the production line, achieving efficient, high-quality, and flexible machine tending by robots.

Simple programming allows for easy control of the robot, maximizing the replacement of labor and freeing up workforce.

Application Details
Screwdriving

High efficiency, stability, and quality enable highly intelligent, automated screwdriving operations.

Torque adjustment range can be configured according to screwdriving product requirements, with each axis adjustable independently.

The operation of the JAKA‘s robots is quick and responsive.

Application Details
Inspection

Replaces manual inspection, enhancing efficiency and ensuring quality, freeing workers from repetitive tasks.

Excellent compatibility, supporting integration with vision systems, measuring instruments, and other devices for non-destructive testing and fully automated high-precision measurement of diverse, small-batch parts.

Highly expandable, allowing companies to quickly achieve secondary deployment based on production needs.

Application Details
Packing

High-precision repeatability ensures product quality, reducing operational costs and minimizing reworked parts and scrapped parts.

Replaces manual labor, reduces management costs, effectively improves production rate

Can spray complex curves with precision control to save paint .

Application Details
Flexible Assembly

Supports small-batch, multi-variety production.

High-precision adaptive assembly effectively prevents workpiece loss and increases productivity.

Lightweight design enables quick deployment on the production line.

Application Details
