JAKA Lens 2D
The JAKA Lens 2D integrated camera adopts a 2D high-resolution industrial camera, and is equipped with a dedicated light source module and optionally configurable camera lenses, providing users with comprehensive 2D vision functions and experiences. Through professional industrial design, it is compact, lightweight and exquisite in appearance. It can realize 2D vision functions in two ways: external fixed installation and installation at the robot end.
Contact Us
The JAKA Lens 2D integrated camera adopts a 2D high-resolution industrial camera, and is equipped with a dedicated light source module and optionally configurable camera lenses, providing users with comprehensive 2D vision functions and experiences. Through professional industrial design, it is compact, lightweight and exquisite in appearance. It can realize 2D vision functions in two ways: external fixed installation and installation at the robot end.
Product Features
Flexible and Convenient
Vision system for easy adaption to different scenarios
01
Customizable
Drag-and-drop programming with flexible function combinations for tailored inspections
02
High Integration
Smooth software and hardware integration for quick and easy deployment
03
Flexible and Convenient
Vision system for easy adaption to different scenarios
Customizable
Drag-and-drop programming with flexible function combinations for tailored inspections
High Integration
Smooth software and hardware integration for quick and easy deployment
Product Parameters
Name
RectangleMark_3mm
Calibration Plate Parameter
12×9_3mm
Name
RectangleMark_10mm
Calibration Plate Parameter
12×9_10mm
Name
ALignMark_36h11_50mm
Feature Code Size
50×50mm
Name
ALignMark_36h11_20mm
Feature Code Size
20×20mm
Camera Dimensions
75×50×51mm (L×W×H)
Resolution
2592 × 1944
Pixel
5MP
Maximum Frame Rate
24FPS
Data Interface
GigE
Color Mode
Monochrome/Color
Lens Focal Length
8mm / 16mm
Recommended Object Distance
100mm - 1000mm
Field of View (8mm Focal Length)
> 70×50mm
Field of View (16mm Focal Length)
> 35×25mm

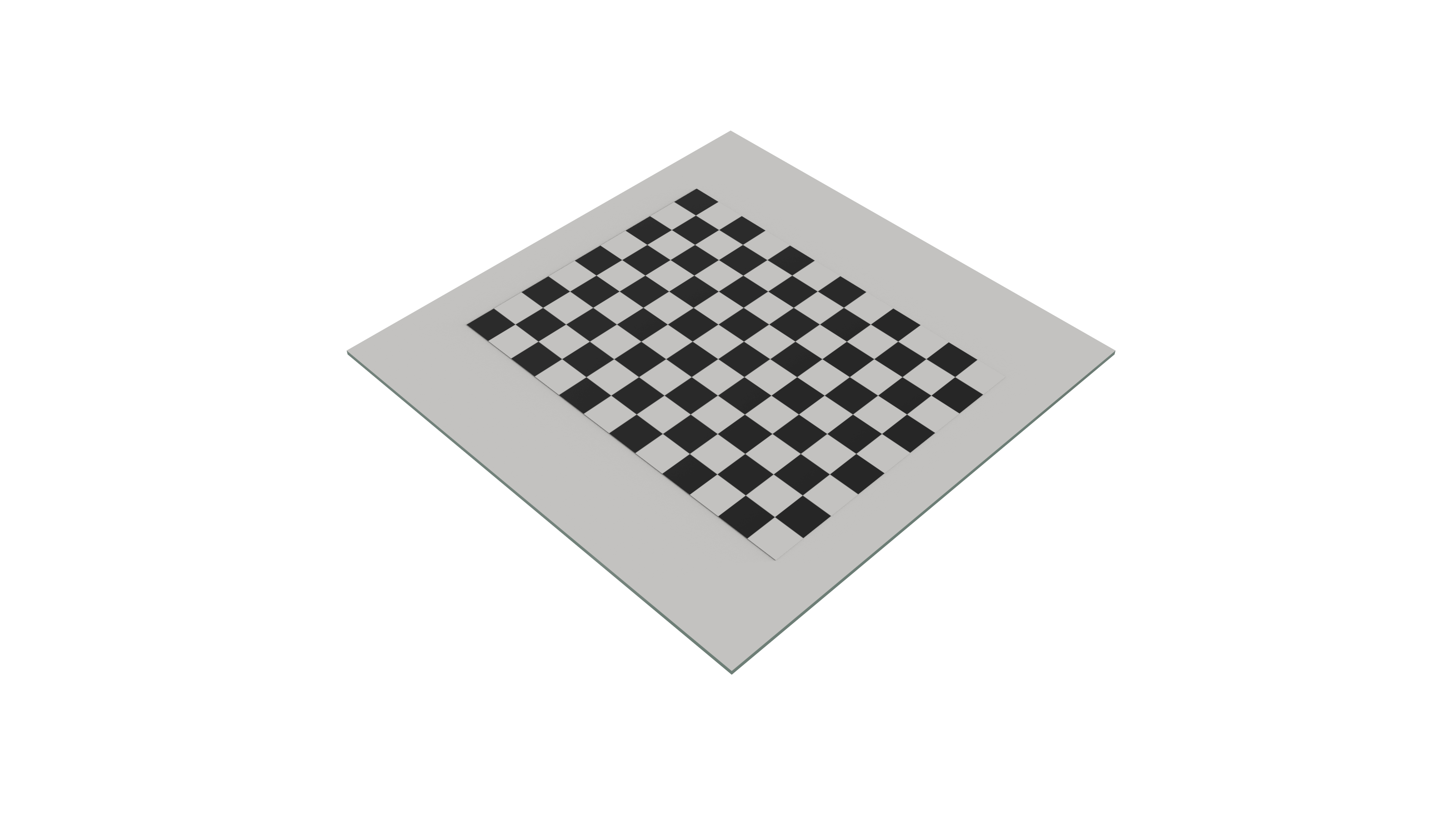

JAKA Caliboard
JAKA AlignMark
Basic Parameter
Series Products
Application Scenario
Loading and Unloading

Simple programming allows for easy control of the robot, maximizing the replacement of labor and freeing up workforce.

Enhances production efficiency and product quality.

Quickly complete secondary deployment of the production line, achieving efficient, high-quality, and flexible machine tending by robots.

Application Details
Screwdriving

High efficiency, stability, and quality enable highly intelligent, automated screwdriving operations.

Torque adjustment range can be configured according to screwdriving product requirements, with each axis adjustable independently.

The operation of the JAKA‘s robots is quick and responsive.

Application Details
Gluing

Replaces manual dispensing, achieving mechanized production. Improves the appearance of dispensing, accurately controls flow, saves glue, reduces labor costs.

Convenient and easy to use, easily movable within the working area, greatly enhancing flexibility and user experience.

Application Details
Handling

Highly reprogrammable, allowing users to adapt programming for different workpieces, shortening the product modification cycle and reducing associated equipment investment.

The robot replaces manual operators, minimizing direct contact with hazardous processing equipment, thus reducing the occurrence of accidents.

Ensure consistent processing precision, guarantee reliable quality, and reduce the defect rate.

Application Details
Inspection

Replaces manual inspection, enhancing efficiency and ensuring quality, freeing workers from repetitive tasks.

Excellent compatibility, supporting integration with vision systems, measuring instruments, and other devices for non-destructive testing and fully automated high-precision measurement of diverse, small-batch parts.

Highly expandable, allowing companies to quickly achieve secondary deployment based on production needs.

Application Details
