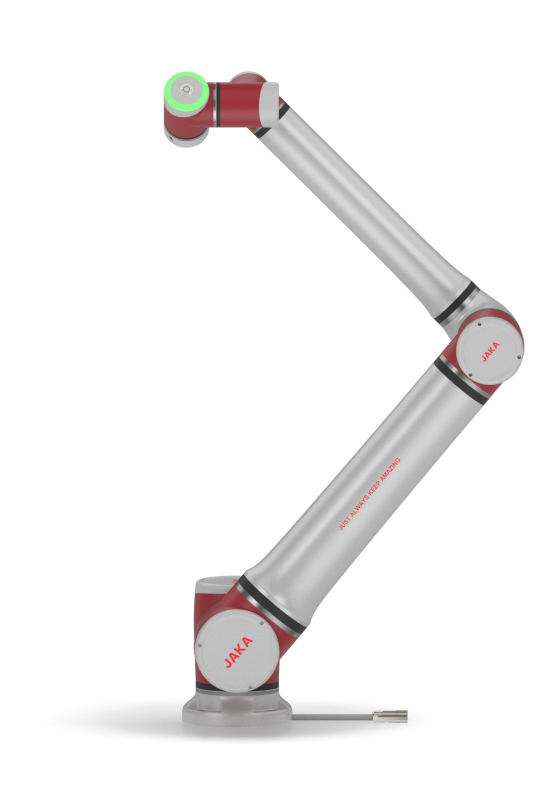

JAKA Zu20
Payload: 20 kg, Weight: 68 kg, Reach: 1780 mm
This is a brand-new collaborative robot specifically designed for high-payload and wide working radius application scenarios. It inherits the technical advantages of JAKA Zu series, including ease of use, safety, reliability and high precision. Leveraging its strengths of 1780 mm reach, 20 kg payload and IP65 protection rating, it expands the application scope and provides solutions for application scenarios such as processing, handling, welding, gluing, palletizing and packaging of heavy and large-sized workpieces.
Contact Us
This is a brand-new collaborative robot specifically designed for high-payload and wide working radius application scenarios. It inherits the technical advantages of JAKA Zu series, including ease of use, safety, reliability and high precision. Leveraging its strengths of 1780 mm reach, 20 kg payload and IP65 protection rating, it expands the application scope and provides solutions for application scenarios such as processing, handling, welding, gluing, palletizing and packaging of heavy and large-sized workpieces.
Product Features
Heavy payload
01
Long reach
02
High accuracy
03
High IP ratings
04
Heavy payload
Long reach
High accuracy
High IP ratings
Product Parameters
Payload
20 kg (44.1 lb)
Weight (including cables)
68 kg (149.9 lb)
Reach
1780 mm(70.1 in)
Repeatability
±0.05 mm (±0.00120 in)
Degree of freedom
Graphical programming, and freedrive programming
Programming
Mobile terminal (computer/pad/mobile phone)
Typical consumption
750W
IP classification
IP65
Humidity
2 digital inputs/ 2 digital outputs/ 2 analog inputs
Footprint
246 mm (9.685 in)
IP classification
IP44
l/0 ports
16 digital inputs, 16 digital outputs, 2 analog inputs or outputs
Communication mode
TCP/IP,Modbus TCP,Modbus RTU, Profinet, Ethemet/lP
Power supply
100-240VAC,50-60Hz
Size
410×307×235 (mm) (W×H×D)
Weight
18 kg (39.68 lb)
Basic Parameter
Specifications
Control cabinet
Series Products
Application Scenario
Loading and Unloading

Enhances production efficiency and product quality.

Quickly complete secondary deployment of the production line, achieving efficient, high-quality, and flexible machine tending by robots.

Simple programming allows for easy control of the robot, maximizing the replacement of labor and freeing up workforce.

Application Details
Packing

High-precision repeatability ensures product quality, reducing operational costs and minimizing reworked parts and scrapped parts.

Replaces manual labor, reduces management costs, effectively improves production rate

Can spray complex curves with precision control to save paint .

Application Details
Palletizing

Achieves automated palletizing, improves production efficiency, and enhances the working environment for operators.

A single robot can manage multiple production lines, significantly reducing costs

Compact structure, small footprint, high integration, and lightweight, effectively solving manual palletizing tasks on-site for customers.

Application Details
